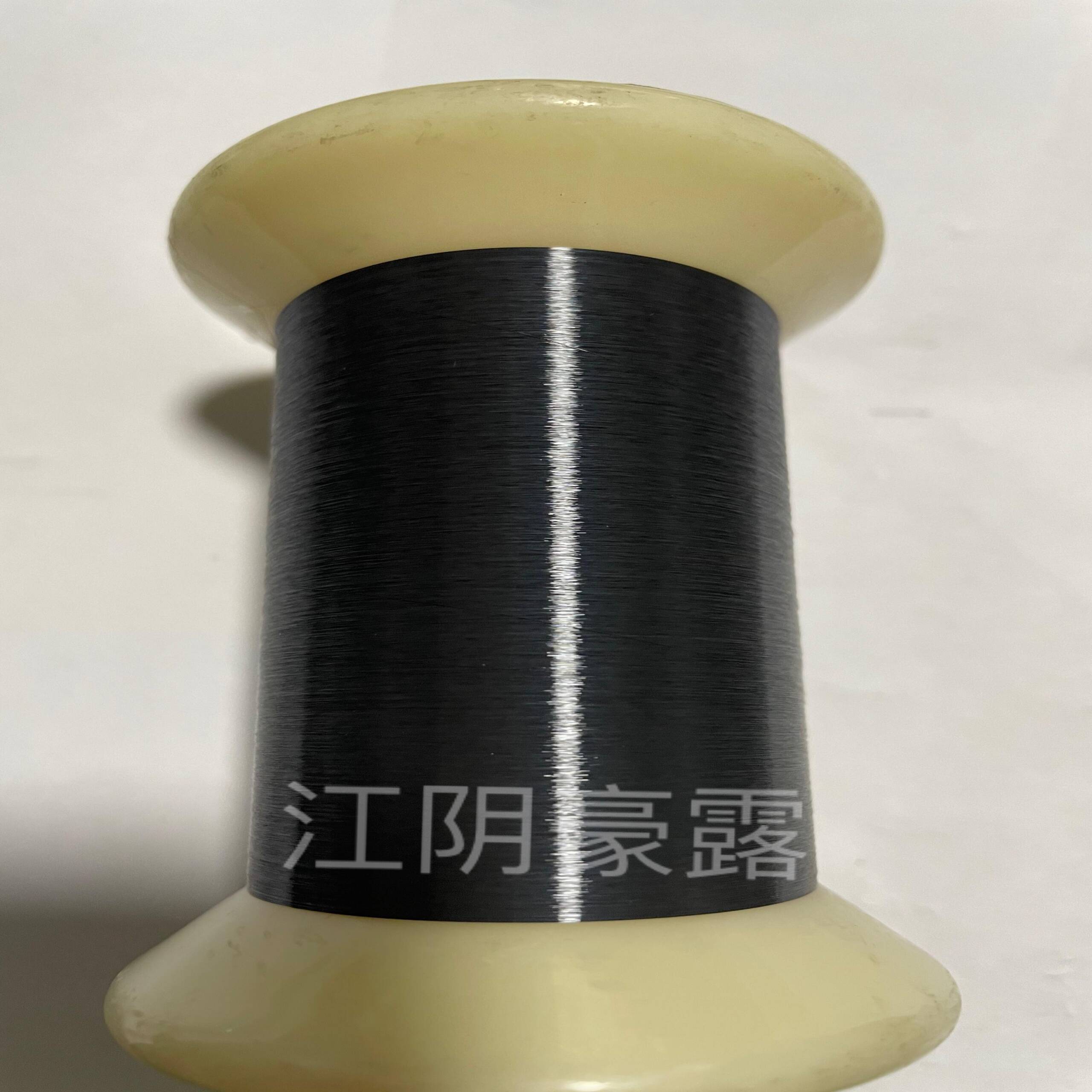

Black Oxidized State Nickel Titanium Strip 0.23*4.10mm
Product Attributes
Silk shape：Round wire,flat wire,square wire,D-shape,triangular wire
Surface state:Black oxidized state,light oxidized ,clean state
Packaging:I-shaped wheel:no breakage,no disordered lines,customizable ruler length
Uses: Widely used in the field of medical devices, it can make up for the defects that the suture is sometimes difficult to operate, can be fixed, and is mainly used for suture needles.
Delivery:1 – 7 days
Description
specification：0.35*4.10mm
Surface:Black Oxidized State
MOQ: 1 kilogram
•Diameter & Tolerance
Diameter(mm)
|
Tolerance(mm)
|
Diameter(mm)
|
Tolerance(mm)
|
Diameter(mm)
|
Tolerance(mm)
|
4.000-2.000
|
±0.025
|
0.350-0.260
|
±0.010
|
0.08-0.050
|
±0.005
|
2.000-1.000
|
±0.020
|
0.260-0.150
|
±0.007
|
0.050-0.025
|
±0.005
|
1.000-0.350
|
±0.010
|
0.150-0.080
|
±0.005
|
0.025-0.018
|
±0.003
|
•Mechanical properties
Max force(N)
|
Tensile(MPa)
|
Elongation %
|
Upper stress(MPa)
|
Residual strain(WT%)
|
At temp
|
Base on diam
|
≥1000 (1350)
|
≥10 (15)
|
≥400 (460)
|
<0.5 55.96
|
(10±10)
|
Base on diam
|
≥1000 (1350)
|
≥10 (15)
|
≥400 (460)
|
<0.5 56.1
|
(-30±10)
|
Base on diam
|
≥1000 (1350)
|
≥10 (15)
|
≥400 (460)
|
<0.5 50.0
|
(60±10)
|
