Description

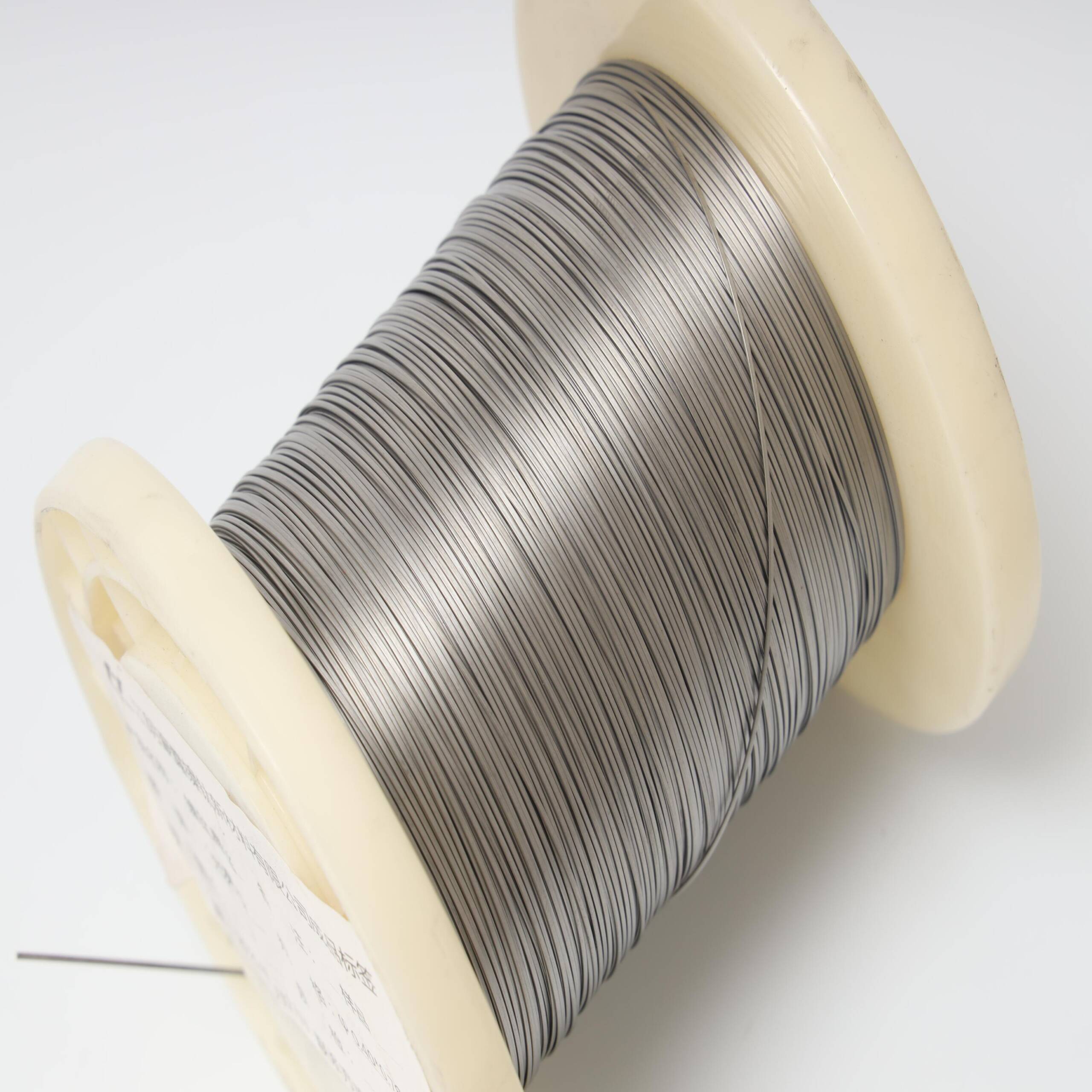

Superelastic Flat Metal Wire (Nitinol) 0.55mm x 0.78mm
Superelastic Nitinol Grades:
We offer this flat wire in standard Superelastic Nitinol grades. These Nitinol grades are precision‑engineered to balance strength and flexibility, ensuring consistent, dependable performance for critical applications.The material is optimized for reliable performance at physiological temperatures. Common grades include SE508 and equivalents.
Unmatched Properties
-
Superelasticity (Pseudoelasticity): Bends sharply and snaps back to its original shape reliably, millions of times.
-
Shape Memory: Returns to a preset form when heated, ideal for actuators and thermal triggers.
-
Biocompatibility: Medical-grade material, making it safe for long-term implantation.
-
Corrosion Resistance: The clean oxide surface protects against harsh environments, including body fluids and chemicals.
-
Fatigue Resistance: Exceptional durability under repetitive stress compared to ordinary alloys.
-
Consistent Force: Provides stable forces across a range of motion — vital for medical devices and precision engineering.
-
MRI Compatibility: Enables medical applications in MRI environments, unlike many traditional metals.
Why Choose the Clean Oxidized State?
-
Protective Finish: Prevents surface damage during handling and processing.
-
Consistent Quality: Enables precision laser cutting, welding, and coating.
-
Cost-Effective: Ready-to-use surface right from the factory.
Key Applications for Flat Metal Wire
-
Medical Devices: Guidewires, stents, orthodontic archwires, endodontic files, and catheter reinforcements.
-
Industrial Applications: Thermal actuators, precision springs, aerospace connectors, fluid-flow control, and micro-mechanical assemblies.
-
Other Uses: MRI-compatible components, minimally invasive surgical tools, and self-deploying mechanisms.
Similar Uses for Nitinol Tube
Although this listing focuses on flat metal wire, Nitinol tubing serves parallel roles:
-
Catheter Shafts & Delivery Systems — Flexible and kink-resistant.
-
Guiding Sheaths & Cannulas — Enables precision access for minimally invasive surgeries.
-
Micro-Instruments & Heat Exchangers — Tailored for medical or aerospace environments.
Why Choose Our Superelastic Flat Metal Wire?
With its ideal dimensions (0.55mm x 0.78mm), clean oxidized surface, and reliable superelastic behavior, this Nitinol flat metal wire delivers precision and performance for advanced medical devices, aerospace engineering, robotics, and beyond. Its unique rectangular form allows for improved space utilization, making it an ideal choice when traditional round wire won’t fit.
Unlock the potential of Superelastic Nitinol Flat Metal Wire — a versatile, high-performance material for next-generation medical and engineering applications.
•Diameter & Tolerance
Diameter(mm) |
Tolerance(mm) |
Diameter(mm) |
Tolerance(mm) |
Diameter(mm) |
Tolerance(mm) |
4.000-2.000 |
±0.025 |
0.350-0.260 |
±0.010 |
0.08-0.050 |
±0.005 |
2.000-1.000 |
±0.020 |
0.260-0.150 |
±0.007 |
0.050-0.025 |
±0.005 |
1.000-0.350 |
±0.010 |
0.150-0.080 |
±0.005 |
0.025-0.018 |
±0.003 |
•Mechanical properties
Max force(N) |
Tensile(MPa) |
Elongation % |
Upper stress(MPa) |
Residual strain(WT%) |
At temp |
Base on diam |
≥1000 (1350) |
≥10 (15) |
≥400 (460) |
<0.5 55.96 |
(10±10) |
Base on diam |
≥1000 (1350) |
≥10 (15) |
≥400 (460) |
<0.5 56.1 |
(-30±10) |
Base on diam |
≥1000 (1350) |
≥10 (15) |
≥400 (460) |
<0.5 50.0 |
(60±10) |
▸ Expert Guidance: 24/7 support
